1. Grates

Grates

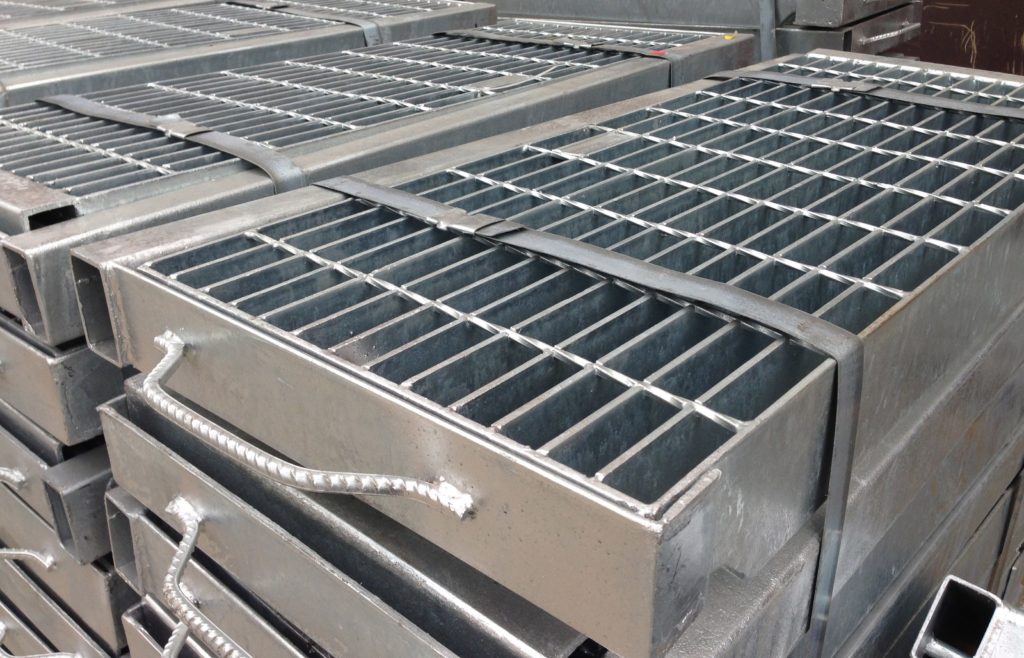

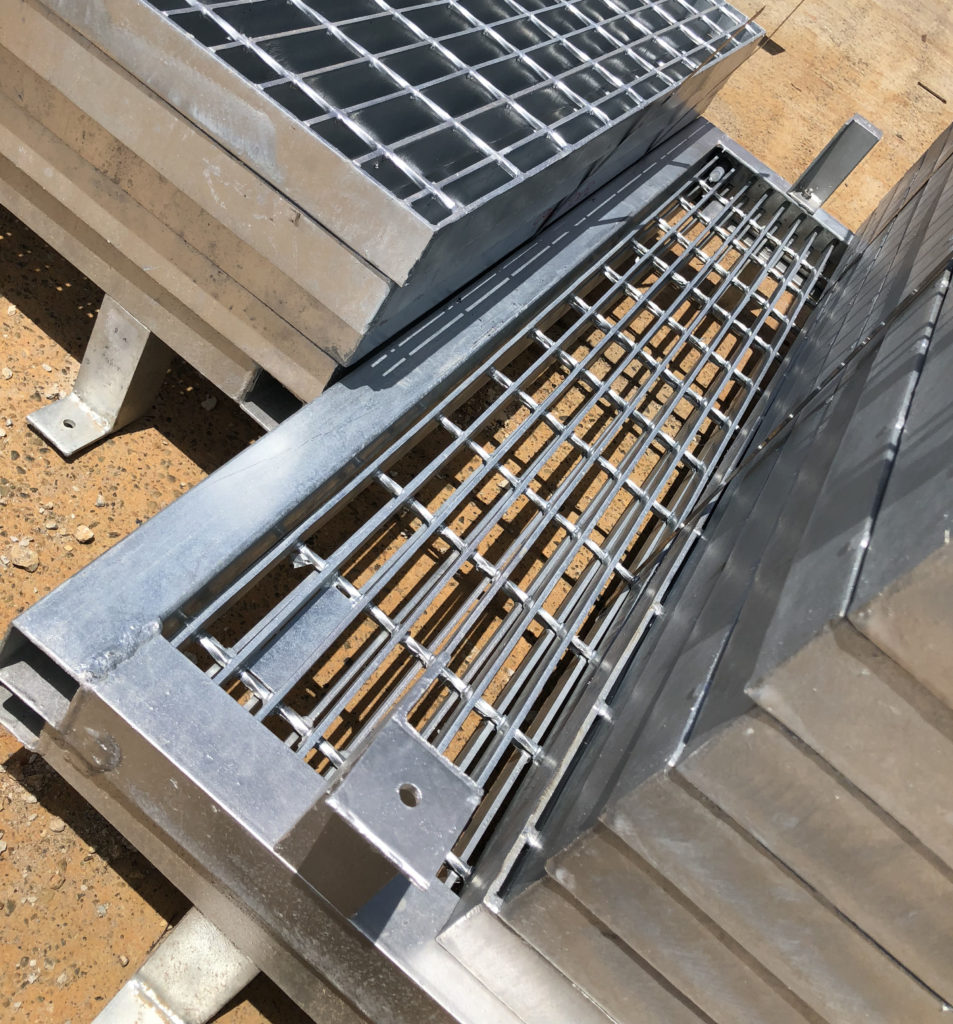

Advanciv supply a range of grates, for both replacement and cast-in-situ projects.

They are supplied in line with AS 3966-2019 and various Class ratings.

We supply :

  • Gully grates
    • with single side RHS
    • with double side RHS
    • cast-in-situ solutions for kerb entry and kerb lintel products
  • Vee grates
  • Surcharge grates on legs for stormwater pits
  • Sump grates:
    • drop in
    • grate and frame drop in or cast in
    • option of heelguard (perforated) design
    • option of lockdown devices

Additional Products

We also supply a range of:

  • Trash screens
  • Trash baskets
  • Step irons – Galvanised (375mm centres)
  • Step irons – Plastic (375mm centres)

Load Class Selection

Traffic Conditions Nominal Wheel Loading (kg) Serviceability Design Load (kN) Ultimate Limit Design Load (kN)
Class A – Extra Light DutyAreas which include footways which are accessible only to pedestrians and pedal cyclists and closed to other traffic. 330 6.7 10
Class B – Light DutyAreas which include footways and light tractor paths accessible to vehicles or livestock. This excludes commercial vehicles. 2,670 53 80
Class C – Medium DutyMalls and areas open to slow-moving commercial traffic. 5,000 100 150
Class D – Heavy DutyCarriageways of roads and areas open to commercial vehicles. 5,000 160 240
Class E – Extra Heavy Duty EGeneral docks and aircraft pavements. 13,700 267 400
Class F – Extra Heavy Duty FDocks and aircraft pavements subject to high wheel loads. 20,000 400 600
Class G – Extra Heavy Duty GDocks and aircraft pavements subject to very high wheel loads. 30,000 600 900
Notes
  • Nominal wheel loads are given for guidance only. Consideration should be given to the type, size and pneumatic pressure of the load applied.
  • Class B design loads exceed AS 5100.2 requirements for footway loading.
  • Class D design loads exceed AS 5100.2 requirements for a W80 wheel load.
  • Class C units are based on an intermediate load.
  • The ultimate limit state load is 3 times the nominal wheel load and 1.5 times the serviceability load.
  • A force of 1 kN approximately equal to the weight of 100 kg.

Advanciv supply a range of grates, for both replacement and cast-in-situ projects.

They are supplied in line with AS 3966-2019 and various Class ratings.

We supply :

  • Gully grates
    • with single side RHS
    • with double side RHS
    • cast-in-situ solutions for kerb entry and kerb lintel products
  • Vee grates
  • Surcharge grates on legs for stormwater pits
  • Sump grates:
    • drop in
    • grate and frame drop in or cast in
    • option of heelguard (perforated) design
    • option of lockdown devices

Additional Products

We also supply a range of:

  • Trash screens
  • Trash baskets
  • Step irons – Galvanised (375mm centres)
  • Step irons – Plastic (375mm centres)

Load Class Selection

Traffic Conditions Nominal Wheel Loading (kg) Serviceability Design Load (kN) Ultimate Limit Design Load (kN)
Class A – Extra Light DutyAreas which include footways which are accessible only to pedestrians and pedal cyclists and closed to other traffic. 330 6.7 10
Class B – Light DutyAreas which include footways and light tractor paths accessible to vehicles or livestock. This excludes commercial vehicles. 2,670 53 80
Class C – Medium DutyMalls and areas open to slow-moving commercial traffic. 5,000 100 150
Class D – Heavy DutyCarriageways of roads and areas open to commercial vehicles. 5,000 160 240
Class E – Extra Heavy Duty EGeneral docks and aircraft pavements. 13,700 267 400
Class F – Extra Heavy Duty FDocks and aircraft pavements subject to high wheel loads. 20,000 400 600
Class G – Extra Heavy Duty GDocks and aircraft pavements subject to very high wheel loads. 30,000 600 900
Notes
  • Nominal wheel loads are given for guidance only. Consideration should be given to the type, size and pneumatic pressure of the load applied.
  • Class B design loads exceed AS 5100.2 requirements for footway loading.
  • Class D design loads exceed AS 5100.2 requirements for a W80 wheel load.
  • Class C units are based on an intermediate load.
  • The ultimate limit state load is 3 times the nominal wheel load and 1.5 times the serviceability load.
  • A force of 1 kN approximately equal to the weight of 100 kg.

Showing all 4 results

  • 450 – 1200 Surcharge Grate

    Clear
  • 450 – 1200 x 50mm Class A – D Hinged Drop In Sump Grate & Frame

    Clear
  • 450 – 900 x 50mm Class B – D Cast-in Sump Grate

    Clear
  • 540 – 1200 x 50mm Class A – D Sump Grate

    Clear
